Salt spray Tester ETSP- SS series

Product Intro

ETSP-SS series are simulates the effects on your product from salt and sea mist. Tests are designed to evaluate corrosion properties and resistance to corrosion of your product. complying with the requirements of relevant national and international standards such as DIN, ISO, ASTM,DEF, MIL-STD, etc.

General Features
  • Test space and outer housing are made of non-corrosive material (Internal material PVC or Polycarbonate, External material : Stainless steel 304, Door material : PVC & Acryl)
  • All piping for air/liquid are made of nylon or polyurethane material

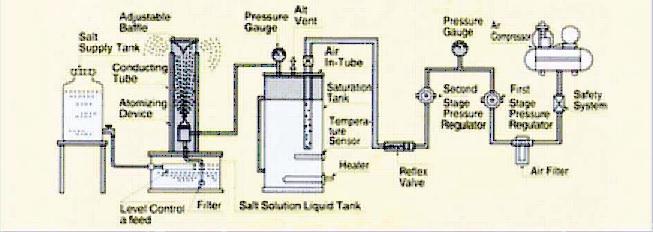

  • Unique salt spray atomizer to guarantee uniform salt spray distribution
  • Friendly, flexible, up-to date control and management systems
  • Allows easy servicing and upgrades
  • Oven networking connecting system (RS232/485)
Technical Features
Temperature range RT ~ +60 ℃
Spray volume 1.5 ± 0.5㎖/80㎠/h
Atomizer Fine fog of 5~20 micron droplet size
Filter/regulator a filter cum air regulator, with pressure form 0~30 PS
Saturator Non-corrosive, temperature controlled saturator, Automatic water level controller, Immersion heater
Input power requirements 230V ±10%, 380V ±10%, 50Hz/60Hz, 1Ph/3Ph (Changeable according to customer specification)
Microprocessor controller including self-diagnostics, warning message function
Technical Specifications
Model Internal dimensions External dimensions Useful capacity
ETSP-SS 200 800x500x500 (WxDxH) mm 1400x700x1500 (WxDxH) mm 200 liters
ETSP-SS 480 1000x800x600 (WxDxH) mm 1600x1000x1600 (WxDxH) mm 480 liters
ETSP-SS 600 1500x800x500 (WxDxH) mm 2100x1000x1500 (WxDxH) mm 600 liters
ETSP-SS 1000 2000x1000x500 (WxDxH) mm 2600x1200x1500 (WxDxH) mm 1000 liters
Note Different size of chambers are available on user's demand
  • Chart recorder
  • PH meter set kit
  • Additional nozzle
  • Demineralization unit
  • Customization available
