Vacuum dry oven ETSP- VD series

Product Intro

ETSP-VD series are designed for removing water from the surface or interior of certain products or substrates or removal of moisture from water-based coatings and adhesives. ETSP-VD series  are designed and built to your specific requirements for part size, production rate and thermal characteristics.

General Features
  • Tight seal at a vacuum level by equipped door gasket and a push button latch
  • Block type heaters heat the chamber evenly and good transmission by anodized aluminum plate shelve
  • Heat tempered full view window permits continuous monitoring
  • Programmable type temerature controller and programmable type vacuum controller (option)
  • Excellent space efficiency and user friendly all in one type operating panel
  • Microprocess PID control / Auto-tuning / Calibration
  • Over temperature limiter / Door opening alarm
  • Digital LED display (1 ℃ resolution) with touch-sensitive keypads
  • RS-232/RS485 data interface
Technical Features
Temperature range Ambient +5 ℃ ~ +250 ℃
Temperature fluctuation Less than ± 0.5 ℃ (vacuum), Less than ± 1.0 ℃ (atmospheric)
Temperature uniformity Less than ± 2.0 ℃ at 100 ℃
Heat up time to 200 ℃ Within 55 minutes under vacuum with no load
Max. final vacuum 100Pa (1mbar)(more higher vacuum range is option)
Pull down rate from atmospheric pressure to 1mbar Within 18 minutes
Recovery time Winhin 11 minutes
Input power requirements 230V/380V, 50Hz/60Hz, 1Ph/3Ph (Changeable according to customer specification)
Technical Specifications
Model Internal dimensions External dimensions Useful capacity
ETSP-VD 27 300x300x300 (WxDxH) mm 680x450x495 (WxDxH) mm 27 liters
ETSP-VD 64 400x400x400 (WxDxH) mm 780x550x595 (WxDxH) mm 65 liters
ETSP-VD 130 500x530x490 (WxDxH) mm 950x780x800 (WxDxH) mm 130 liters
ETSP-VD 512 800x800x800 (WxDxH) mm 1060x960x1450 (WxDxH) mm 512 liters
Note Different size of chambers are available on user's demand.
Options
  • Recorder
  • Inlet filer
  • Hermetic terminals for application or for thermocouple
  • Additional shelf
  • Vacuum pumps and oil mist trip

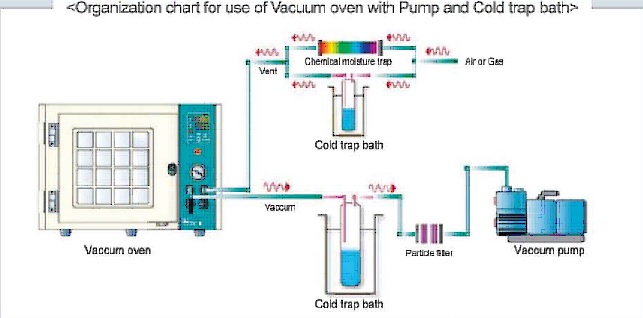

  • Cold trap baths
  • Customization available
