UV exposure chamber ETSP- UV series

Product Intro

Provide UV(Ultra violet) light or full  spectrum sunlight exposure for accelerated life testing of photovoltaic     (PV) modules and for UV pre-conditioning  required   by IEC 61215 and 61646 for PV module  testing .

 ETSP-UV series is to determine the accelerated effect of sunlight exposure . Both UVA315~385nm & UVB 280~315nm bulbs are utilized for all accelerated weathering test methods that will show how a material will react to long term sunlight exposure.

General Features
  • Safe, durable and perfect accelerated weathering tests of materials
  • Simulation years worth of sunlight in days
  • UV spectral transmittance analysis by accelerated UV exposure
  • Friendly, flexible, up-to date control and management systems
  • Allows easy servicing and upgrades
Technical Features
UV Temperature range -50 ~ 120 ℃ (Changeable according to user’s demand)
Input power requirements 230V ±10%, 380V ±10%, 50Hz/60Hz, 1Ph/3Ph (Changeable according to customer specification)

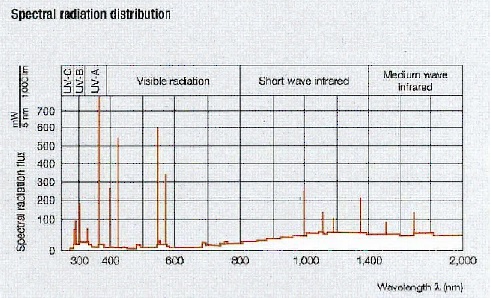

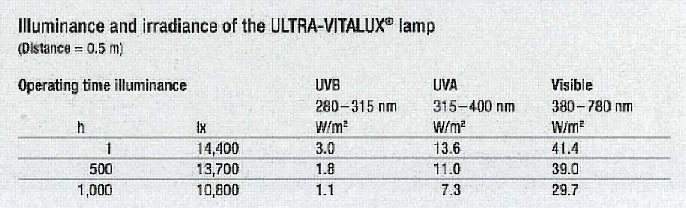

ULTRA-VITALUX UV high pressure lamp 300W (Changeable according to user’s demand.)
Microprocessor controller including self-diagnostics, warning message function
High precision UV radiometer and radiation integrator
Technical Specifications
Model Internal dimensions External dimensions Useful capatity
ETSP-UV 1200 1500x800x800 (WxDxH) mm 2200x1900x1900 (WxDxH) mm 1200 liters
ETSP-UV 2600 2000x1300x1000 (WxDxH) mm 2200x1800x2100 (WxDxH) mm 2600 liters
ETSP-UV 3750 2500x1500x1000 (WxDxH) mm 2800x2100x2100 (WxDxH) mm 3750 liters
ETSP-UV 6900 3000x2300x1000 (WxDxH) mm 3300x2900x2100 (WxDxH) mm 6900 liters
Note Different size of chambers are available on user's demand. Chamber dimensions are subject to change due to final design and specification
